CI854AK01 3BSE018192R1 ABB Profibus DP communication interface module

CI854AK01 3BSE018192R1 ABB Profibus DP communication interface module

Product Overview

ABB CI854AK01 is a high-performance Profibus DP communication interface module specially designed for ABB AC 800M programmable automation controller (PAC). This module provides a standard Profibus DP interface, supporting dual-mode operation of Master and Slave. It is widely used to connect frequency converters, remote I/O stations, intelligent valve positioners, HMI devices, and other industrial field devices that support the Profibus DP protocol.

Core features

Single-channel Profibus DP interface: Complies with IEC 61158 and IEC 61784 standards
Master/Slave dual-mode support: Roles can be flexibly configured within the same project
High-speed communication capability: The baud rate supports up to 12 Mbps, meeting the requirements of high-speed control
Plug-and-play design: Directly installed on the AC 800M controller rack, powered and communicating via the backplane bus
LED status indication: Clearly display the power supply (PWR), operation (RUN), Profibus communication (COM) and fault (ERR) status of the module
Electrical isolation: 500 VAC isolation is provided between the Profibus interface and the system backplane to enhance anti-interference capability
Seamless integration of Control Builder M: Easily import GSD files, configure slave devices and map data through ABB engineering software

Typical application scenarios
Connect the ABB ACS800/ACS880 frequency converter to achieve centralized monitoring and parameter reading and writing
Expand remote I/O stations (such as ET200M, S800 I/O via Profibus)
Integrated intelligent valve positioners (such as ABB TZIDC, Siemens SIPART)
Conduct data exchange with third-party PLCS (such as Siemens S7-300/400)
Build a hybrid automation system and integrate Profibus devices from multiple brands

Technical parameters

Model: CI854AK01

Order Number: 3BSE018192R1

Product Name: Profibus DP Communication Interface Module

Applicable systems: ABB AC 800M series controllers (such as PM851, PM861, PM862, etc.)

Communication protocol: Profibus DP (Class 1 & Class 2)

Number of channels: 1 Profibus DP interface

Interface type: RS-485 (9-pin D-SUB female connector, conforming to EN 50170)

Maximum baud rate: 12 Mbps (automatically negotiated or manually set)

Maximum number of slave stations: Up to 126 slave stations are supported (subject to network topology and cycle time constraints)

Electrical isolation: 500 VAC (between the Profibus interface and the backplane

Operating temperature: 0°C to +60°C

Storage temperature: -40°C to +85°C

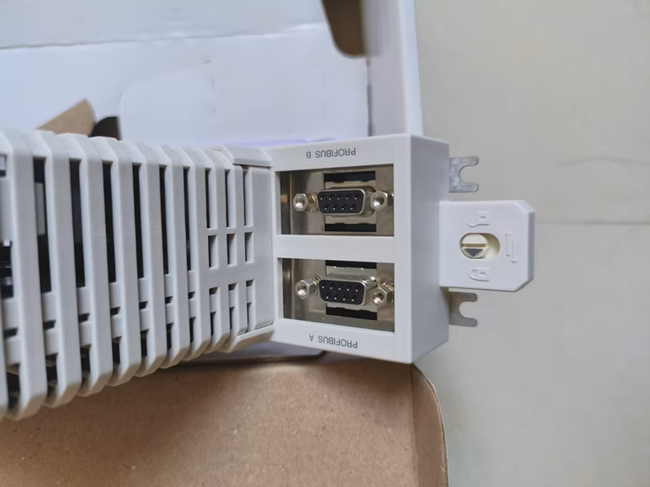

Product Images

Related Products

ABB Profibus DP communication module

CI854AK01 interface module with warranty

ABB spare parts communication interface

CI854AK01 3BSE018192R1 ABB Profibus DP communication interface module Images
