Product Overview
ABB AX32-30-01-80 is a high-performance modular AC contactor launched by ABB, belonging to the widely recognized AX series product line. This contactor is specially designed for motor control, lighting systems, heating equipment and various industrial automation applications under frequent start-stop and high-load conditions. With its compact structure, low-power coils, excellent electrical life and global certification system, the AX32-30-01-80 is an ideal choice for modern smart factories, building automation and energy management systems.
Core features
✅ high reliability and long service life
It adopts silver alloy contact material, which has strong resistance to arc erosion and significantly extends the electrical life.
The AC-3 usage category can withstand up to one million operation cycles (typical value).
The mechanical life can reach over 15 million cycles, meeting the demands of harsh industrial environments.
✅ energy conservation and environmental protection
Equipped with low-power electronic holding coils (EcoCoil™ technology), it saves up to 80% energy compared to traditional contactors.
The standby power consumption is extremely low and complies with IEC 60947-4-1 and RoHS/REACH environmental protection standards.
✅ modular design, flexible expansion
Support horizontal assembly of multiple attachments
Auxiliary contact modules (such as LA/LB series)
Surge suppressor (RC or varistor type)
Mechanical interlocking device
Delay module (integrated time relay)
Complex control logic can be easily constructed without the need for additional relays.
Technical Application
Motor control: Start, stop and forward/reverse control of three-phase asynchronous motors such as water pumps, fans, compressors and conveyor belts.
Building automation: Central air conditioning systems, elevator control, management of large lighting circuits.
Industrial production lines: Power switching modules for packaging machinery, injection molding machines, and CNC machine tools.
Energy and Infrastructure: Auxiliary control of photovoltaic inverters, pumping stations of water treatment plants, backup power switching systems.
OEM equipment integration: Embedded as a standard component in the OEM control cabinet to enhance the reliability of the entire machine.
Installation and Usage instructions
Installation: Insert the contactor into the standard 35mm DIN rail and ensure that the snap is fully locked.
Main circuit wiring: L1/L2/L3 is connected to the power supply, and T1/T2/T3 is connected to the load (such as a motor).
Control circuit: A1/A2 is connected to a 24V DC control power supply (note polarity).
Auxiliary contacts: 13-14 are normally open contacts and can be used for PLC input or status indicator lights.
Suggestion: Connect a thermal overload relay (such as ABB TA series) in series in the control circuit to achieve complete motor protection.

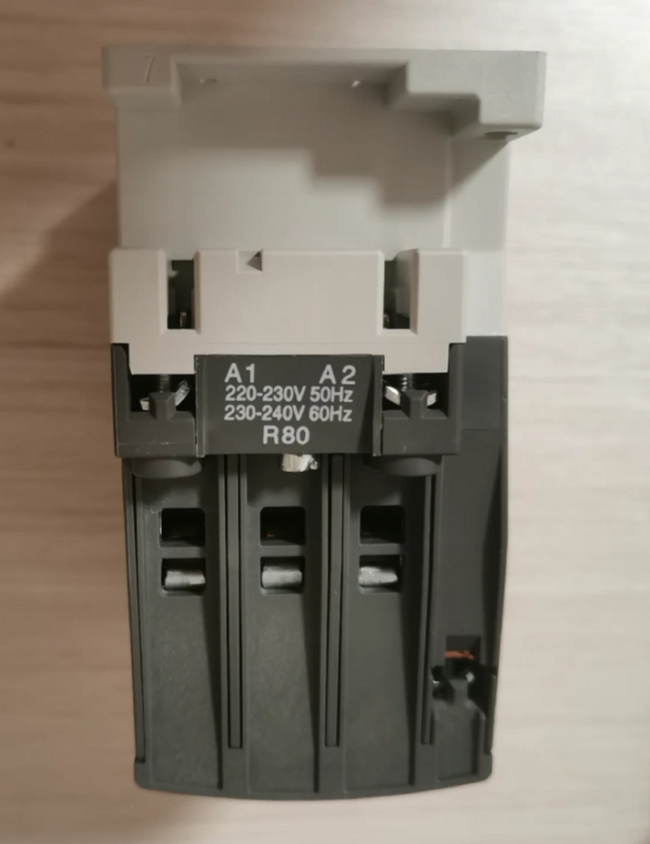

Product Images
