NDCU-33CX ABB Control and communication unit Distributed control system
Product Overview
ABB NDCU-33CX is a high-performance control and communication unit, specifically designed for the automation needs of modern factories, offering powerful real-time control, data processing and network communication capabilities. This equipment is applicable to a wide range of industrial application fields, such as power, oil and gas, water treatment, food and beverage, etc., aiming to enhance production efficiency and system reliability.
Core features
High-performance processor
A powerful multi-core CPU architecture
Real-time operating system, ensuring rapid response and stable operation
Large-capacity memory, supporting the execution of complex algorithms and historical data storage
Rich communication interfaces
It is equipped with multiple communication protocols such as Ethernet/IP, Modbus TCP, and Profibus DP
Support redundant communication links to enhance system availability
It provides a serial port and a USB interface, facilitating on-site debugging and maintenance
Modular design
Support hot-swappable I/O modules (such as DI, DO, AI, AO
Users can flexibly expand the number and types of I/O according to project requirements
The front panel LED display provides status feedback, simplifying troubleshooting
Technical parameters
Power industry: Key control nodes in the automation systems of power plants and substations
Petrochemical industry: Process control and monitoring in oil refineries and chemical plants
Water treatment: Automated management of waterworks and sewage treatment plants
Manufacturing industry: Centralized control of automotive manufacturing and electronic assembly production lines
Intelligent building: Central controller of building automation system
Installation and Usage instructions
Hardware installation
Install the NDCU-33CX on the appropriate guide rail or frame;
Connect redundant power input to ensure stable power supply;
Connect to the master station or other network devices using shielded twisted-pair cables;
Insert I/O modules as needed, paying attention to the sequence and address Settings of the modules.
Software configuration
Create an NDCU-33CX device instance in Control Builder M;
Assign labels to each channel and configure relevant parameters;
Set the communication protocol and baud rate to ensure compatibility with the main station;
Download the configuration file and start the controller.
Debugging and verification
The front panel LED display shows the normal operating status.
View real-time data and alarm information online using engineering software.
Loop tests can be conducted through analog input and output to ensure that each channel is working properly.

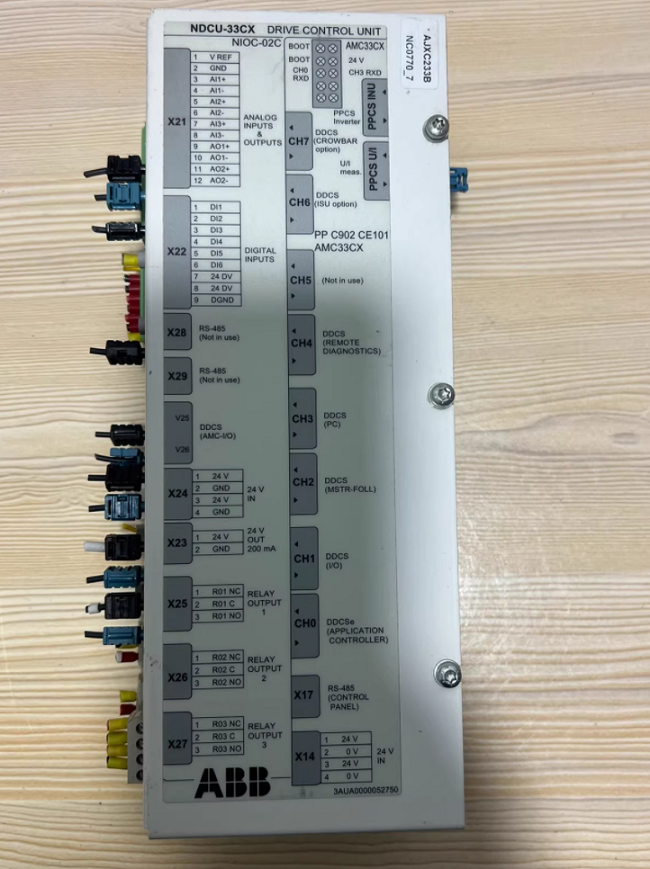

Product Images
Related Products
| NDCU-01CX | 11NDCU-23CX |
| 2NDCU-02CX | 12NDCU-31CX |
| 3NDCU-03CX | 13NDCU-32CX |
| 4NDCU-04CX | 14NDCU-33CX |
| 5NDCU-05CX | 15NDCU-34CX |
| 6NDCU-11CX | 16NDCU-41CX |
| 7NDCU-12CX | 17NDCU-42CX |
| 8NDCU-13CX | 18NDCU-43CX |
| 9NDCU-21CX | 19AFIN-01C |
| 10NDCU-22CX | 20FENA-21 |
