RDIO-01 ABB Industrial automation Remote distributed I/O module
Product Overview
ABB RDIO-01 is a high-performance remote distributed I/O module designed to provide flexible and reliable signal acquisition and control functions for industrial automation systems. This module supports multiple communication protocols and features high-density digital input/output channels, making it suitable for a wide range of industrial applications, such as power, water treatment, manufacturing, and more.
Core features
Multi-protocol support
It is equipped with multiple communication protocols such as Ethernet/IP, Modbus TCP, and Profibus DP
Support redundant communication links to enhance system availability
It provides a serial port and a USB interface, facilitating on-site debugging and maintenance
Rich I/O configuration
It includes 8 digital input channels (DI) and 8 digital output channels (DO)
Supports 24V DC input/output and is compatible with various sensors and actuators
It can be expanded to more I/O channels to meet the requirements of complex applications
Technical parameters
Power industry: Remote data acquisition for automation systems in power plants and substations
Petrochemical industry: Process control and monitoring in oil refineries and chemical plants
Water treatment: Automated management of waterworks and sewage treatment plants
Manufacturing industry: Centralized control of automotive manufacturing and electronic assembly production lines
Intelligent building: Remote controller for building automation systems
Installation and Usage instructions
Hardware installation
Install the RDIO-01 on the appropriate DIN rail;
Connect the 24V DC power input to ensure stable power supply;
Connect to the master station or other network devices using shielded twisted-pair cables;
Insert additional I/O modules as needed, and pay attention to the module sequence and address Settings.
Software configuration
Create an instance of the RDIO-01 device in Control Builder M;
Assign labels to each channel and configure relevant parameters;
Set the communication protocol and baud rate to ensure compatibility with the main station;
Download the configuration file and start the controller.
Debugging and verification
The front panel LED display shows the normal operating status.
View real-time data and alarm information online using engineering software.
Loop tests can be conducted through analog input and output to ensure that each channel is working properly.
Product Images
Related Products
| RDIO-01 | 11LD MUI-01 |
| 2RDIO-02 | 12LD MUI-02 |
| 3RDIO-03 | 13RSPC-01 |
| 4RDIO-04 | 14RSIO-01 |
| 5RMIO-01C | 15RSIO-02 |
| 6RMIO-02C | 16RTAI-01 |
| 7RMIO-03C | 17RTAO-01 |
| 8RMIO-04C | 18RAXI-01 |
| 9MUI-01 | 19RAXO-01 |
| 10MUI-02 | 20RREC-01 |
Product Tags:
|
|

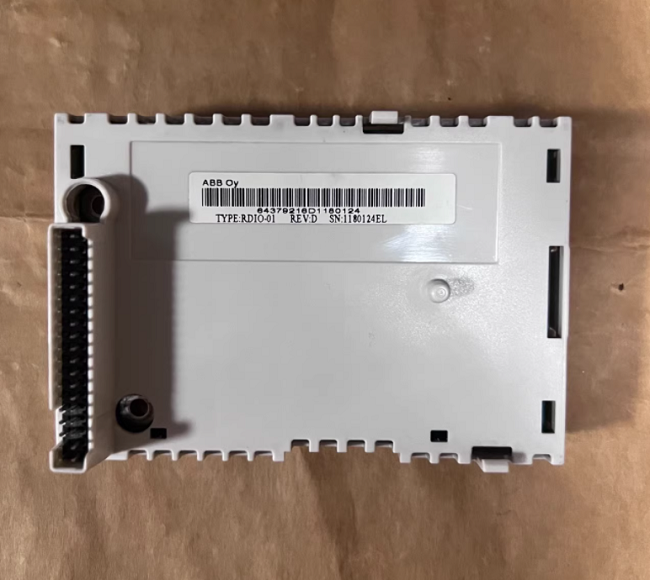

RDIO-01 ABB Industrial automation Remote distributed I/O module Images
|
