1.Overview of the EL2004 Beckhoff

The Beckhoff EL2004 is a high-performance, compact EtherCAT digital output terminal block designed for industrial automation control systems. This module transmits binary 24V DC control signals from automation equipment to process-level actuators in an electrically isolated manner, acting as a crucial bridge between the supervisory control system and field actuators.

The EL2004 provides four independent output channels, each equipped with LED status indicators to display signal status in real time, facilitating on-site commissioning and fault diagnosis. Based on EtherCAT bus technology, it supports seamless integration with TwinCAT automation software, enabling high-speed, high-precision distributed control.

1. Powerful Load Driving Capability

Supports various load types: resistive loads, inductive loads (such as solenoid valves and relays), and lighting loads, offering extremely high application flexibility.
Maximum output current per channel reaches 0.5 A, directly driving various industrial actuators without the need for additional intermediate relays.

2. Comprehensive Protection Mechanisms
Short-circuit protection: When a short circuit occurs at the output, the module automatically limits the current (typical short-circuit current < 2 A) to prevent damage.
Reverse polarity protection: Effectively prevents equipment damage caused by incorrect field wiring.
Low breaking energy: < 150 mJ per channel, ensuring safe shutdown in fault conditions.

3. High-Speed ​​Response Performance
Fast switching time: Typical on (TON) value 60 µs, typical off (TOFF) value 300 µs, meeting high-precision timing control requirements.
Supports XFC (eXtreme Fast Control) timestamp function, enabling microsecond-level synchronization of process data.

4. Modular and Easy-to-Use Design
Compact structure: 12 mm ultra-thin housing, supports standard DIN. DIN rail mounting saves control cabinet space.
Configuration-free design: No address or parameter settings required, plug and play, significantly reducing commissioning workload.
Electrical isolation: 500V (E-bus/field potential) isolation voltage effectively resists field interference.
Pluggable wiring: The ES2004 model supports pluggable wiring layers for easy maintenance and replacement.

2.Core Features:

Manufacturer: Beckhoff Automation
Model: EL2004
Industrial Module Type: Digital Output
Protocol: EtherCAT
Number of Outputs: 4 Channels
Rated Voltage: 24 V DC
Maximum Output Current: 0.5 A/channel (with short-circuit protection)
Load Type: Resistive, Inductive, Indicator Loads
Switching Time: Typical 60 µs on, typical 90 µs-300 µs off
Electrical Isolation: 500 Vrms (E-bus/Field Voltage)
Weight: Approx. 55-63.9 g
Protection Rating: IP20
Operating Temperature: Please note that information may vary depending on the source; some loads are -25°C to +60°C, others are 0°C to +55°C
Certifications: CE, UL, ATEX

High-performance output and control: Each channel can provide up to 0.5A of drive current and supports various load types. Its fast switching time (typical 60 µs on-time) meets the needs of high-speed applications.

Easy installation and maintenance: The module supports pluggable wiring and is compatible with all ESxxxx series terminals, greatly simplifying installation, replacement, and maintenance processes.

Integrated status diagnostics: The module is equipped with LED status indicators that display the signal status of each channel in real time, facilitating quick system diagnosis and troubleshooting by field personnel.

Strong protection mechanisms: The module integrates short-circuit protection and reverse voltage protection, effectively preventing module damage caused by wiring errors or load failures.

Simple system integration: As an EtherCAT terminal module, it requires no address setting or complex configuration and can be seamlessly integrated into Beckhoff's automation systems via the EtherCAT protocol for distributed control.

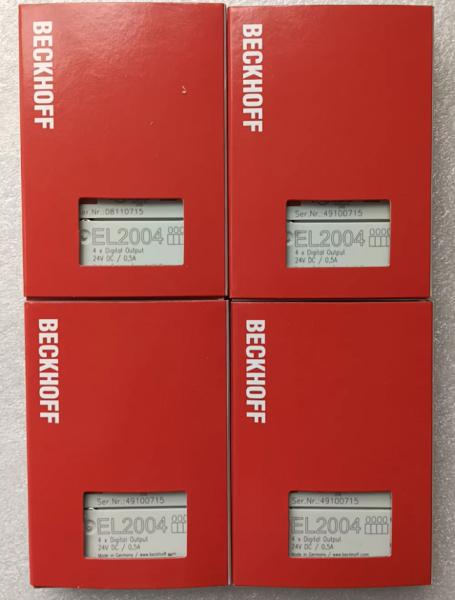

3.Product details pictures
